RAE Systems - QRAE 3

Note: Call for pricing and custom sensor configuration. IPS offers full support in selecting the right model and gas sensors for your application.

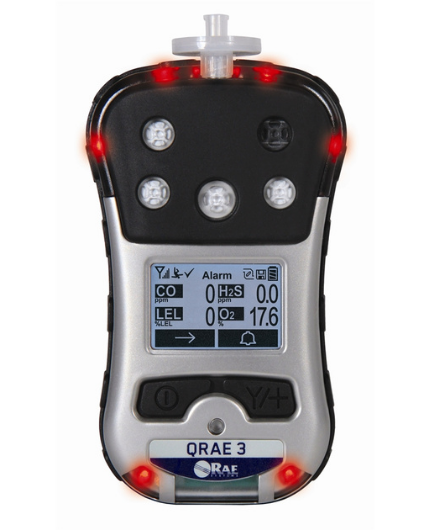

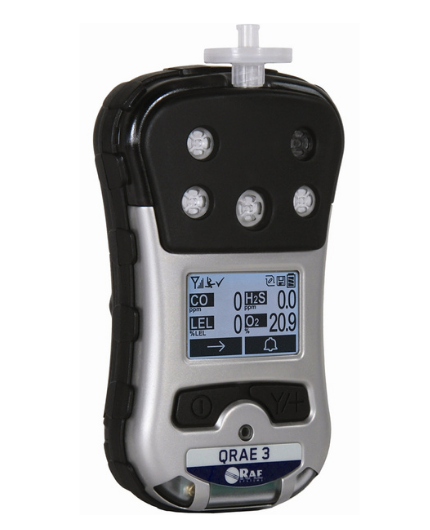

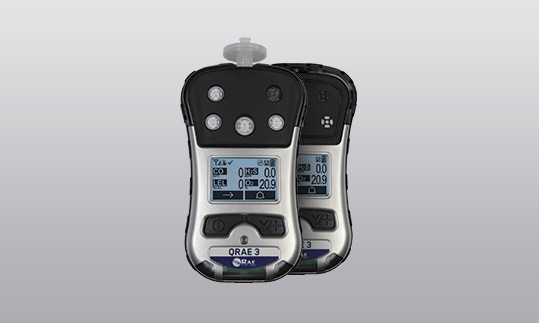

The Honeywell QRAE 3 is a versatile, portable gas detector designed to monitor up to four gases simultaneously, including oxygen (O₂), combustible gases (LEL), and toxic gases such as hydrogen sulfide (H₂S), carbon monoxide (CO), sulfur dioxide (SO₂), and hydrogen cyanide (HCN). Its robust design and advanced wireless capabilities make it an ideal choice for professionals operating in challenging environments.​

Key Features:

• Multi-Gas Monitoring: Simultaneously detects up to four gases, providing comprehensive safety coverage in a single device.​

• Wireless Connectivity: Equipped with state-of-the-art wireless technology, the QRAE 3 enables real-time transmission of instrument readings and alarm status to remote locations, enhancing situational awareness and response times.

• Durable Design: Built to withstand harsh conditions, the device features a concussion-proof housing and is IP65/67 rated for water and dust resistance.​

• User-Friendly Interface: The intuitive two-button operation and large graphical display, which can rotate 180°, ensure ease of use even in demanding situations.​

• Comprehensive Alarm System: Features a five-way local and remote wireless notification system, including audible, visual, vibrating, man-down, and remote alarms, ensuring prompt awareness of hazardous conditions.​

• Flexible Sampling Options: Available in both pumped and diffusion configurations to suit various operational needs.​

• Easy Maintenance: Supports field-replaceable sensors and pumps, and is compatible with the AutoRAE 2 system for automated bump testing and calibration.​

Specifications:

• Dimensions:

  • Diffusion Model: 5.5" H x 3.2" W x 1.5" D (140 mm x 82 mm x 42 mm)

  • Pumped Model: 5.7" H x 3.2" W x 1.7" D (145 mm x 82 mm x 42 mm)​

• Weight:

  • Diffusion Model: 12.9 oz (365 g)

  • Pumped Model: 14.5 oz (410 g)​

• Operating Temperature: -4°F to 122°F (-20°C to 50°C)​

• Humidity Range: 0% to 95% RH (non-condensing)​

• Battery Life: 8 to 14 hours, depending on configuration and usage​

• Data Logging: Continuous data logging for up to three months for four sensors at one-minute intervals​

• Sampling Pump Range: Up to 100 ft (30 m)​

• Ingress Protection: IP65/67​

• Certifications: Class I, Division 1 (US and Canada)​

Applications:

• Confined Space Entry​

• Emergency Response​

• Industrial Safety​

• Environmental Remediation

• Oil and Gas Industry​

• Fireground Operations​

The Honeywell QRAE 3 stands out as a reliable and flexible solution for professionals requiring accurate and immediate detection of hazardous gases. Its robust design, coupled with advanced sensor technology and wireless capabilities, ensures that safety personnel are equipped with the necessary tools to respond effectively in high-risk environments.​
