Holmatro SP 5260 CORE Spreader

Lightweight Power. Versatile Performance. Engineered for Demanding Rescues.

The Holmatro SP 5260 is a high-performance hydraulic spreader designed for spreading, squeezing, and pulling operations. Equipped with Holmatro's patented CORE Technology, this tool offers enhanced safety, efficiency, and ease of use, making it an indispensable asset for rescue teams.

Key Features:

CORE Technology

• Integrated Hose System: Combines oil feed and return in a single hose, reducing clutter and potential hazards.

• Enhanced Safety: Minimizes the risk of hose entanglement and damage during operations.

Integrated LED Lighting

• Six High-Output LEDs: Built into the carrying handle to illuminate the work area, ensuring visibility in low-light conditions.

• Shadow-Free Operation: Strategically positioned lights prevent shadows, allowing for precise tool placement.

Ergonomic Design

• Redesigned Control Handle: Offers improved grip and control, reducing operator fatigue.

• Optimized Carrying Handle: Facilitates comfortable handling in various working positions.

Versatile Functionality

• Multi-Purpose Tool: Capable of spreading, squeezing, and pulling with appropriate accessories.

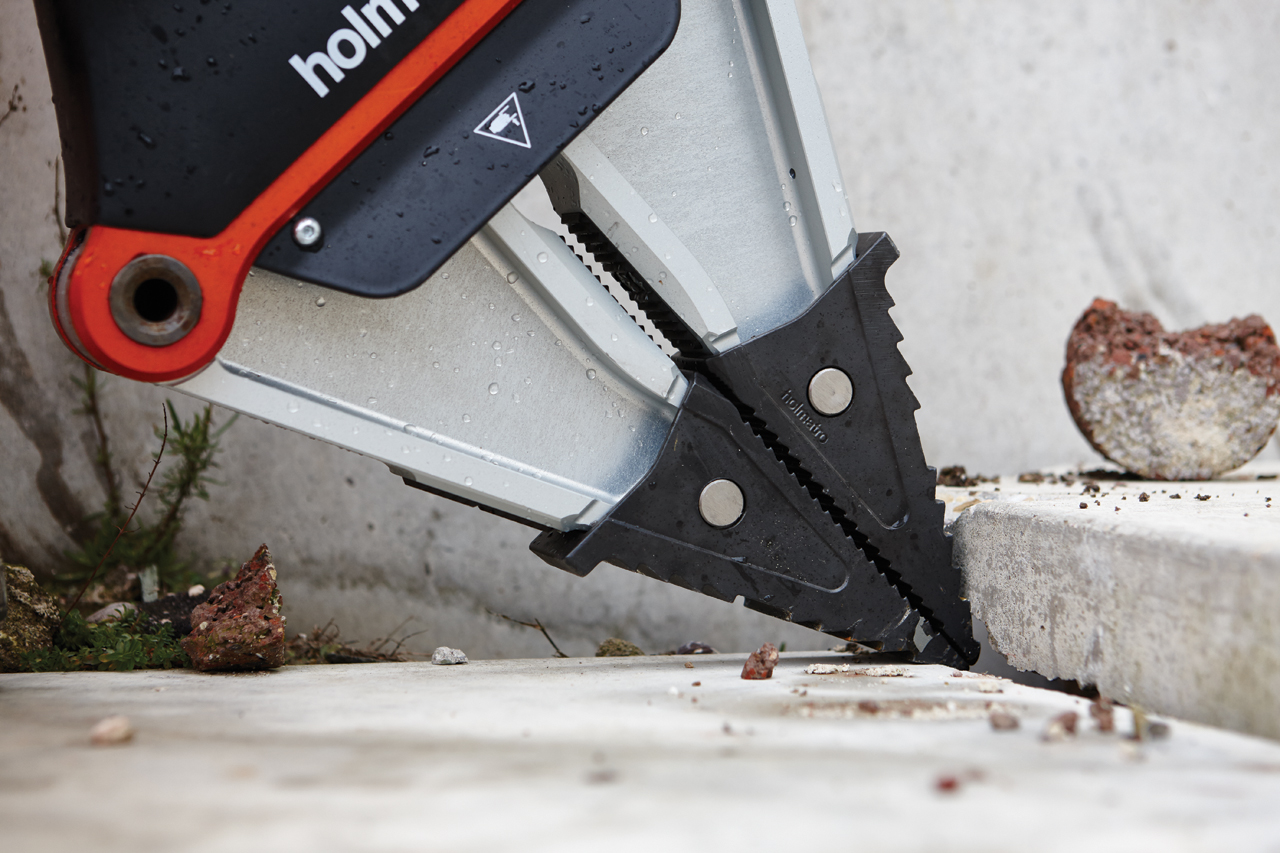

• Effective Spreader Tips: Designed for a strong grip on a variety of materials and shapes.

Technical Specifications:

• Model: SP 5260

• Article Number: 150.012.325

• Connector Type: CORE

• Max. Working Pressure: 720 bar / 10,443 psi

• Spreading Distance: 822 mm / 32.4 in

• Max. Spreading Force: 522 kN / 117,350 lbf

• Theoretical Max. Force: 875 kN / 196,708 lbf

• Min. Spreading Force (EN 13204): 62 kN / 13,938 lbf

• Max. Squeezing Force: 127 kN / 28,551 lbf

• Max. Pulling Force: 82 kN / 18,434 lbf

• Pulling Distance: 701 mm / 27.6 in

• Dimensions (L x W x H): 900 x 322 x 223 mm / 35.4 x 12.7 x 8.8 in

• Weight (Without Hose): 19.6 kg / 43.2 lb

• Weight (Ready for Use): 20.9 kg / 46.1 lb

• Compliance: EN 13204 (BS62/822-19.6), NFPA 1936

Optional Accessories:

• Cutting Tip Set CTS 02

• Pulling Attachment Set PAS 03

• Pulling Chains Set PCS 03

• Pulling Chains Set in Case PCS 04

Looking for a different size spreader?

IPS also offers additional Holmatro CORE spreaders, including the:

• SP 5240 – Compact and lightweight, ideal for rapid interventions and confined space operations

• SP 5250 – Mid-size model offering a strong balance between force and maneuverability




  Contact IPS to find the best spreader model for your department’s needs.

Shipping Restriction: This product can only be shipped within New Hampshire, Massachusetts, and Maine due to manufacturer territory agreements. For more information or assistance, please contact us directly.
