BW TECHNOLOGIES BY HONEYWELL - Ultra Multi-Gas Detector – 5-Gas Model

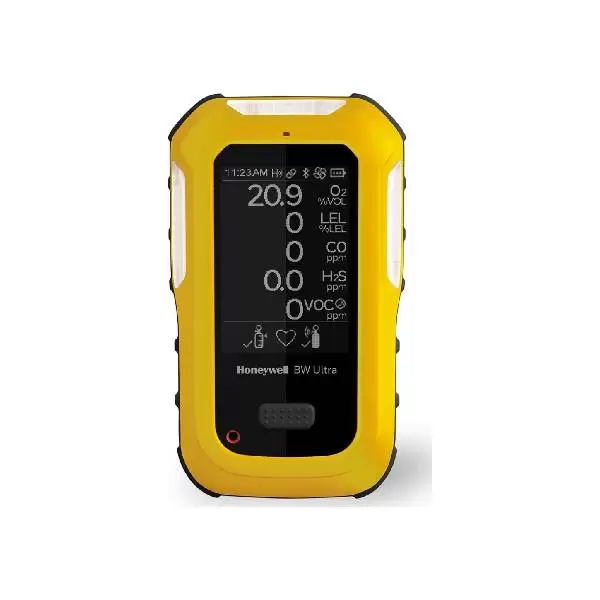

Honeywell BW™ Ultra Multi-Gas Detector – 5-Gas Model (Part #: HU-X1W1H1M1Q1-Y-N)

Advanced Confined Space Monitoring with VOC Detection and Internal Pump

The Honeywell BW™ Ultra is a cutting-edge five-gas detector engineered for pre-entry and continuous monitoring of confined spaces. This model (HU-X1W1H1M1Q1-Y-N) simultaneously detects oxygen (O₂), combustible gases (LEL), hydrogen sulfide (H₂S), carbon monoxide (CO), and volatile organic compounds (VOCs) using a photoionization detector (PID). Equipped with an internal pump, it allows for remote sampling up to 75 feet, ensuring worker safety before and during entry into hazardous environments.

Designed with user comfort and operational efficiency in mind, the BW Ultra features a large, easy-to-read display, one-button operation, and Honeywell’s 1-Series sensor technology for fast response times and reliable performance. Its rugged, ergonomic design and IP66/68 rating make it suitable for the most demanding industrial conditions.

Key Features:

• Simultaneous 5-Gas Detection – Monitors O₂, LEL, H₂S, CO, and VOCs for comprehensive safety coverage.

• Integrated Pump – Enables remote sampling up to 75 ft (22.9 m) for confined space entry.

• 1-Series Sensor Technology – Provides fast response, reliable performance, and long sensor life.

• Large Dot Matrix Display – Offers clear readings and intuitive icons for quick decision-making.

• IntelliFlash™ Compliance Indicator – Visual confirmation of device compliance and operation.

• Rugged Design – Honeycomb housing with scratch-resistant display protector; IP66/68 rated.

• Data Logging – Stores up to 45 days of data based on 8-hour shifts at 15-second intervals.

• Event Logging – Records up to 30 alarm events and 10 bump test events.

• Bluetooth® Connectivity – Supports wireless data transfer and device management.

• Honeywell TouchConnect™ Technology – Allows for quick instrument management and configuration.

Specifications:

• Gases Detected: O₂, LEL, H₂S, CO, VOCs (PID)

• Sensor Ranges:

  • O₂: 0–30% vol

  • LEL: 0–100% LEL

  • H₂S: 0–100 ppm

  • CO: 0–2000 ppm

  • VOCs: 0–1000 ppm

• Operating Temperature: -4°F to 131°F (-20°C to 55°C)

• Humidity: 5–95% RH (non-condensing)

• Ingress Protection: IP66/68

• Battery Life: Up to 18 hours (14 hours with PID sensor)

• Dimensions: 5.8" x 3.3" x 1.6" (14.8 x 8.5 x 4.0 cm)

• Weight: 14.5 oz (411 g) with clip

• Alarms: Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit)

• Self-Test: Performs internal diagnostics every 24 hours (sensors, battery, circuitry)
