Akron Brass StreamMaster™ II with Aerial Valve Manifold (AVM) – 2000 GPM

High-Performance, Compact Fire Monitor System for Aerial Applications

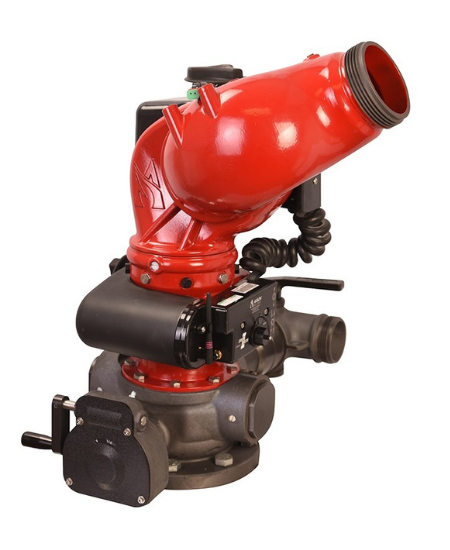

The Akron Brass StreamMaster™ II with Aerial Valve Manifold (AVM) is a state-of-the-art fire monitor system designed to deliver exceptional performance in aerial firefighting operations. Combining a high-flow capacity with a compact and lightweight design, this system ensures efficient water delivery and enhanced maneuverability on the fireground.​

Key Features:

• High Flow Capacity: Delivers up to 2000 GPM (7600 LPM) at 100 PSI, providing robust water flow for effective fire suppression.​

• Compact and Lightweight Design: Constructed from durable Pyrolite® material, the StreamMaster™ II offers a lightweight solution without compromising strength, facilitating easy installation and operation on aerial platforms.​

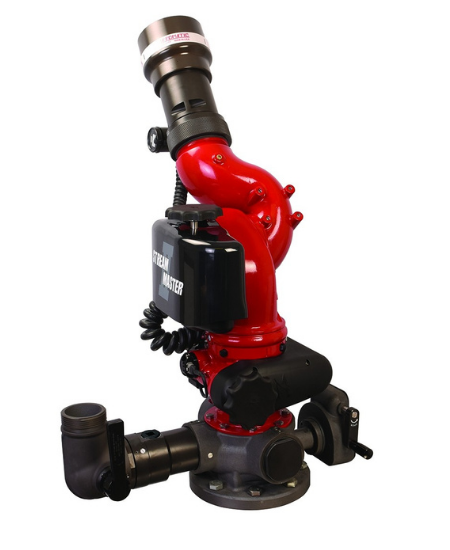

• Aerial Valve Manifold (AVM): Features an integrated ball valve with a manual gear actuator, allowing precise control of water flow to the monitor. The AVM includes a 90° discharge valve with 2½" NH threads for hose line extensions, and three discharge port locations for flexible configurations.​

• Versatile Configurations: Available in five standard configurations to suit various apparatus setups:​

  • S1 – Ladder right valve​

  • S2 – Ladder left valve

  • S3 – Platform right valve

  • S4 – Platform left valve​

  • S5 – Platform dual valve​

• Enhanced Control Options: Offered in both electric and manual models, with the electric version featuring fully enclosed motors and gears, manual handwheel overrides, and programmable functions such as oscillation, obstacle avoidance, and stow/deploy positions.

• Advanced Control System: The electric model includes a sealed CAN control system with wireless capability and a USB port for quick software updates, ensuring reliable and user-friendly operation.​

Specifications:

• Model: Style 3486 (Electric) / Style 3487 (Manual)​

• Material: Pyrolite®​

• Inlet: 4" 150 lb. flange​

• Outlet: 3½" Male (89 mm)​

• Flow Rate: Up to 2000 GPM (7600 LPM)​

• Operating Pressure: Up to 250 PSI​

• Weight: Approximately 62.1 lbs (28.2 kg) for the electric model​

• Rotation Range: 355° with physical stops at ±45°, ±90°, ±135°, and ±157°​

• Elevation Range: -45° to +120° with adjustable stops at -15°, +45°, and +90°​

The Akron Brass StreamMaster™ II with AVM is an ideal solution for emergency responder OEMs, fire departments, and structural firefighting applications requiring a high-performance, compact, and versatile monitor system.​
